      Roller group series

      Strong aligning roller group

      The self-aligning roller group comprises a roller group and a tractor. The idler group is installed in the same way as the ordinary self-aligning roller group, and the tractor is mounted on the intermediate frame with the hoop. By pulling rod and aligning roller group can be connected to a group of tractors to drive a group of aligning roller group; can also be a group of tractors to drive multiple sets of roller group. Long life advantage.


      order

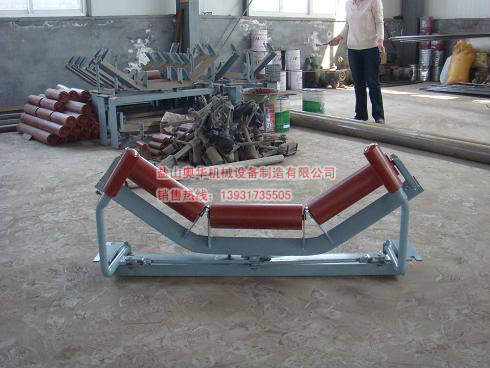

      One - way aligning roller group


          The self-aligning roller group comprises a roller group and a tractor. Roller group with the usual aligning roller group installation phase


      In the same way, the tractor is mounted on the intermediate frame with the hoop. By pulling rod and aligning roller group connected to a group of tractors to bring a group of aligning roller group; can also be a group of tractors to drive multiple sets of roller group.


          When the belt deviation, the offset side of the offset roller to move to the outside, the tractor lever swivel lever, driven by idlers idler group of activities on the beam swinging a certain angle, then roller rotation direction and belt running Direction to produce the inclination angle and the relative speed, thus produce the corrective action to the belt.


      The present invention is characterized in that:


              1, roller group bracket deflection power source from the belt caused by the main force deviation, reliability.


              2, a group of tractors can be driven in series 1-3 group aligning roller to increase the force on the tape.


              3, the angle of deviation roller roller bracket bracket deflection angle difference is greater than. Roller 1 ° swing, roller group bracket rotation up to 2 °, so


          Roller group rectification high sensitivity.


              4, roller offset to a certain distance, the control system can be fixed in the appropriate position roller, the shift belt to play a mandatory role in pushing the block.


              5, the roller installation parameters and the normal position of the same roller.


      Precautions:


         The roller set can only be installed in the one-way operation of the conveyor.


         The position of the retractor relative to the idler group at the time of installation must be in front of the tape.


         When the distance between the tractor and the idler roller group changes, the distance between the roller and the tape will be changed. It can be used to adjust the distance between the roller and the tape.
